What Is Inverter Duty Transformer? vs Transformer
Choosing the right transformer is critical for industrial performance and equipment life. Many industries often assume that a normal transformer and an inverter duty transformer are the same. If you are using VFD drives, solar inverters, or automation systems, understanding this difference becomes extremely important.
In this guide, we explain everything in simple and practical terms.
What is a Normal Transformer?
A normal transformer (also called a conventional transformer) is designed to operate with a standard grid power supply.
It works best when:
-
The input voltage is sinusoidal (pure AC waveform)
-
Frequency is constant (50Hz or 60Hz)
-
There are no heavy harmonics or switching pulses
These transformers are commonly used in:
-
Power distribution networks
-
Commercial buildings
-
Industrial plants with a stable power supply
-
Standard electrical installations
They are reliable and cost-effective for regular applications.

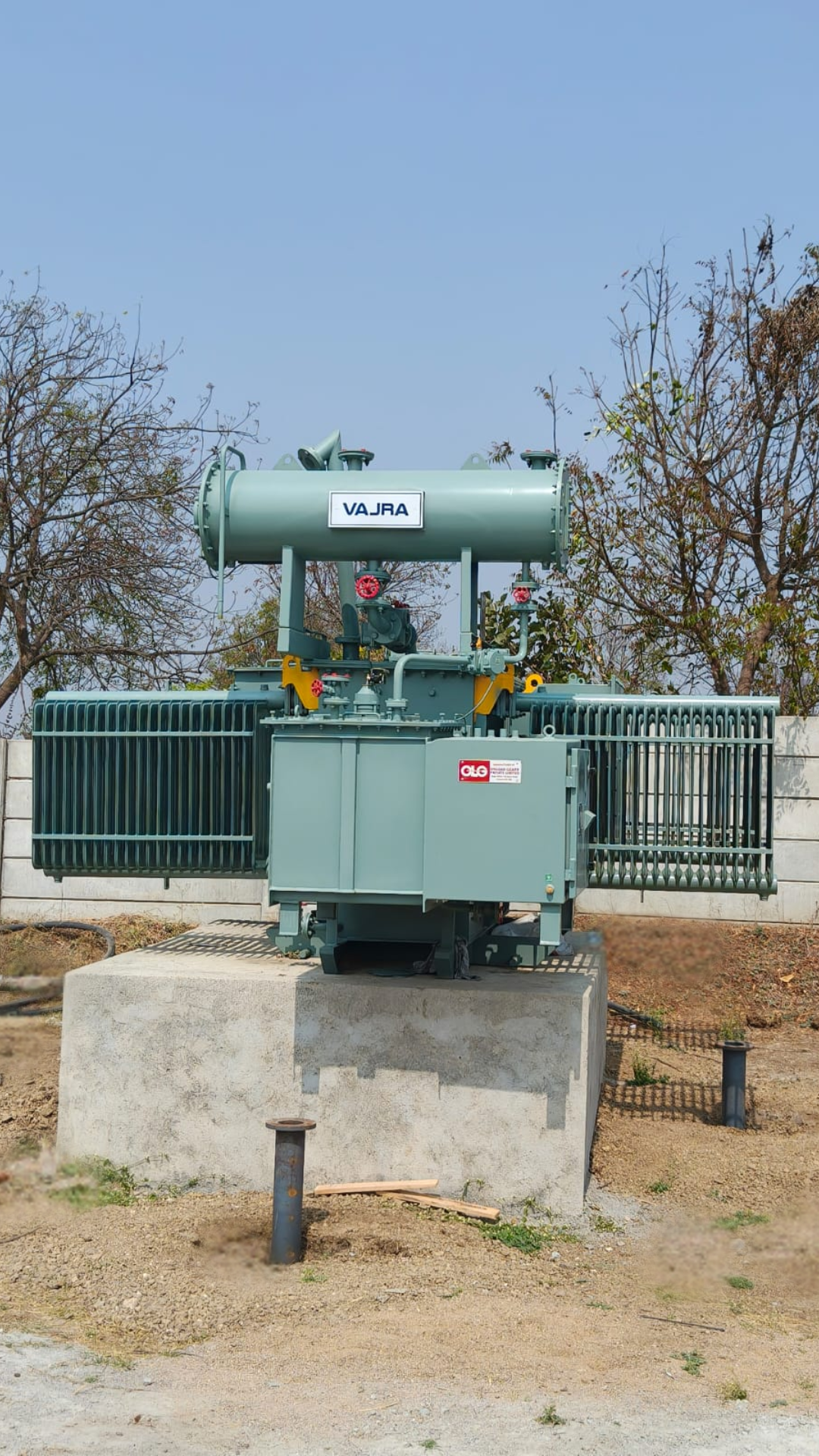

What is an Inverter Duty Transformer?
An inverter duty transformer is specially designed to handle power from inverter systems.
Unlike normal transformers, inverter systems produce:
-
PWM (Pulse Width Modulated) output
-
High dv/dt voltage spikes
-
Harmonic distortion
-
Rapid switching frequencies
A normal transformer may overheat or fail under such conditions.
They are widely used in:
-
Solar power plants
-
Wind energy systems
-
VFD-driven motors
-
CNC machines
-
Automation industries
-
Industrial motor speed control systems
Major Differences Between Inverter Duty and Normal Transformer
1. Type of Input Power
Normal transformers are designed for pure sine wave input.
Inverter duty transformers are designed for non-sinusoidal inverter output.
2. Harmonic Handling Capability
Normal transformers cannot withstand high harmonic distortion for long periods.
Inverter duty transformers are built to handle high harmonic currents safely.
3. Insulation Strength
Normal transformers have standard insulation levels.
Inverter duty transformers use reinforced insulation systems to withstand voltage spikes.
4. Heating Performance
Inverter systems generate additional heat due to harmonics.
Inverter duty transformers are designed to operate under higher thermal stress without failure.
5. Application Suitability
Normal transformers are suitable for grid-based supply.
Inverter duty transformers are mandatory for VFD and renewable energy applications.
Why Using a Normal Transformer with an Inverter Is Risky
If a normal transformer is connected to an inverter system:
-
It may overheat
-
Insulation may break down
-
Core losses increase
-
Transformer life reduces
-
Unexpected failures may occur
This can result in downtime and higher maintenance costs.
Technical Design Enhancements in Inverter Duty Transformers
To handle inverter-based loads, inverter duty transformers include:
-
High-grade CRGO core for reduced losses
-
Copper electrostatic shielding
-
Higher insulation class
-
Optimized winding design
-
Improved thermal management
These features ensure long-term reliability under fluctuating loads.
When Should You Choose an Inverter Duty Transformer?
You must choose an inverter duty transformer if:
-
You are using VFD motor drives
-
You operate solar or renewable energy systems
-
Your plant has automation systems
-
Your application involves variable frequency operation
-
Harmonic distortion levels are high
For standard grid power without harmonics, a normal transformer is sufficient.
How to Select the Right Transformer for Your Industry
Before selecting a transformer, consider:
-
Nature of load
-
Harmonic distortion level
-
Operating frequency
-
Voltage rating
-
Ambient temperature
-
Future expansion plans
Consulting an experienced transformer manufacturer ensures proper customization.
Why Choose Vajra Transpower?
Vajra Transpower manufactures high-quality inverter-duty and conventional transformers designed for industrial and renewable applications.
We provide:
-
Custom-designed inverter duty transformers
-
NABL tested transformer solutions
-
33kV and 11kV transformer manufacturing
-
Industrial-grade power and distribution transformers
Looking for a reliable inverter duty transformer manufacturer? Contact Vajra Transpower for custom-designed, NABL-tested, and ISO-certified transformer solutions tailored to meet your industry requirements.
